Open Benchmark:
Windows NT Server 4.0 and Linux

By Bruce Weiner
(PDF version, 156 KB)

June 30,1999

White Paper Contents

Overview
   Phase 1 and 2 Results
   Phase 3 Results
   Conclusions
   Mindcraft Certification
Phases 1 and 2
Phase 3
FAQ
Linux Tunes

Related Article

PC Week's Story

Disclosure

Mindcraft, Inc. conducted the performance tests described in this report at its own expense. The tests were done between June 14 and June 18, 1999.

Acknowledgements

We thank John Taschek of PC Week for inviting the participants to hold the Open Benchmark at ZD Labs in Foster City, California. We also thank Pankaj Chowdhry and Henry Baltazar, both from PC Week, for overseeing the Open Benchmark.

Thanks to all of the participants in the Open Benchmark: Doug Ledford and Zach Brown from Red Hat as well as Michael Stephenson, Brad Waters, and Neel Jain from Microsoft. A special thanks to Bob Young, President of Red Hat, for participating in the Open Benchmark.

Finally, we want to thank Linus Torvalds, Alan Cox, Jeremy Allison, David Miller, Dean Gaudet, and Doug Ledford who provided tuning information and patches that we used in the Second Benchmark.

Overview

Open Benchmark Vindicates Mindcraft's Reputation and Shows Windows NT Server 4.0 Significantly Outperforms Linux

Mindcraft's first Windows NT Server/Linux benchmark received  criticism from the Linux community regarding configuration mistakes we made. To address these concerns, Mindcraft conducted a Second Benchmark of Windows NT Server 4.0 and Red Hat Linux 5.2 this time upgraded to the Linux 2.2.6 kernel. For the Second Benchmark we asked for and received tuning help from leaders of the Linux, Samba, and Apache communities. However, even before the Second Benchmark was finished we received additional criticism about the fairness of this test. We decided to withhold publication of the Second Benchmark results and instead proposed the Open Benchmark

The purposes for the Open Benchmark were:

  1. To confirm that Mindcraft's previous testing was unbiased and representative of Linux's performance.
  2. To address concerns raised by the Linux community over our first and second Windows NT/Linux benchmark.
  3. To compare the performance of the latest Linux software tuned by Linux Experts to Windows NT Server 4.0 in an open environment on the same computer.

The Open Benchmark measured the file- and Web- server performance of Windows NT Server 4.0 and Linux using the Ziff-Davis Benchmark Operation's NetBench 5.01 file-server benchmark and WebBench 2.0 Web-server benchmark. All of the tests used the same Dell PowerEdge 6300/400 server.

PC Week oversaw the Open Benchmark. It was conducted in three phases with Red Hat, Microsoft, Mindcraft, and PC Week witnessing all tests1:

  • Phase 1: Mindcraft re-ran the Second Benchmark.
  • Phase 2: Red Hat engineers used the same software as in Phase 1 but tuned it themselves
  • Phase 3: Microsoft and Red Hat used the latest software available and tuned it to achieve the best performance possible.

As you will see in this white paper, the results from our earlier benchmarks are very close to those of the Open Benchmark

This white paper is divided into two major parts. The first part presents the details about Phases 1 and 2. These phases are combined in one part because they cover the same versions of software. The second part presents the details of Phase 3. We've also included an FAQ with this white paper based on feedback from our earlier report. For those that are interested, we have included a page with links to all of the Linux tunes and patches used in the Open Benchmark.

Result Summary

Phases 1 and 2

Phases 1 and 2 used only a four-processor configuration of a Dell PowerEdge 6300/400 server. We used Red Hat Linux 5.2 upgraded to the Linux 2.2.6 kernel for Phases 1 and 2 ("Linux" in Phases 1 and 2) in order to match the software used in our Second Benchmark. Also, we used Windows NT Server 4.0 with Service Pack 4 installed.

File-Server Tests

Figure 1 shows the file-server performance in Phases 1 and 2. We used Samba 2.03 as the Linux file server software. The Linux results Mindcraft obtained in Phase 1 and the results Red Hat obtained in Phase 2 are identical (the slight difference is within the normal variations found between runs of identical configurations).

The file-server tests show that Mindcraft obtained the same  performance as Red Hat, demonstrating that Mindcraft's test was unbiased.

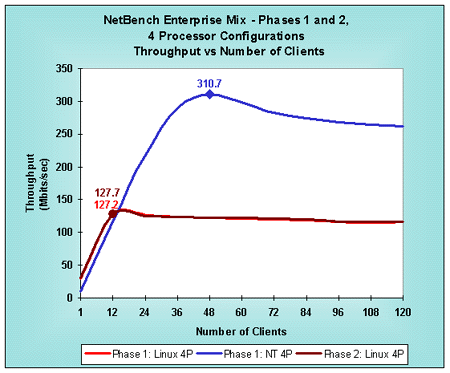

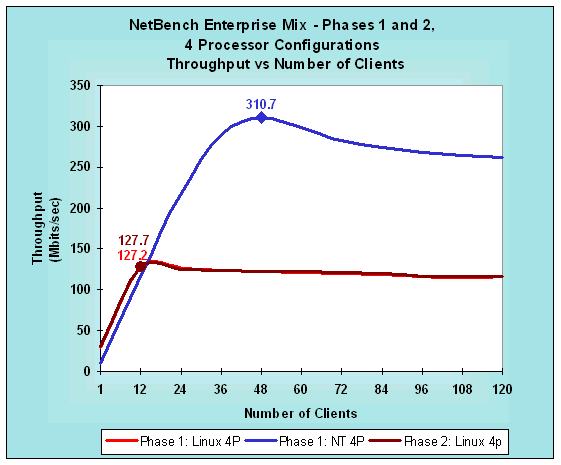

Figure 1: File Server Performance in Phases 1 and 2
(larger numbers are better)

Click to view larger chart

Web-Server Tests

Figure 2 shows the Web-server performance in Phases 1 and 2. We used Apache 1.3.6 as the Web server on Linux. Mindcraft and Red Hat obtained identical test results, within normal run-to-run variances.

The Web-server tests show that Mindcraft obtained the same  performance as Red Hat, demonstrating again that Mindcraft's test was unbiased.

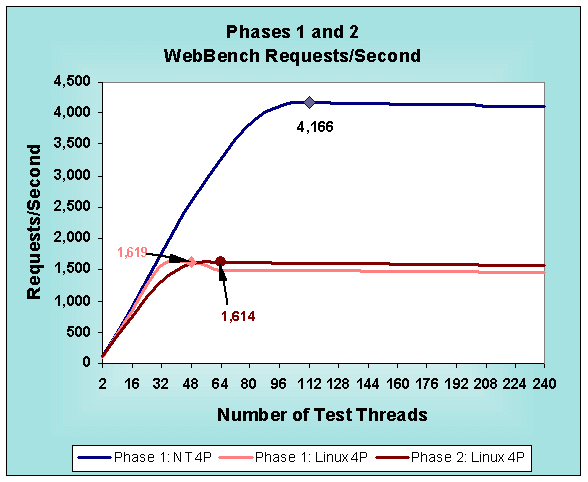

Figure 2: Web Server Performance in Phases 1 and 2
(larger numbers are better)

Click to view larger chart

Phase 3

Phase 3 used both a one- and four-processor configuration of the same Dell server. Mindcraft used the same version of Windows NT Server 4.0 as in Phases 1 and 2. Red Hat chose to use Red Hat Linux 6.0 upgraded to the 2.2.10 kernel ("Linux" in Phase 3). See Phase 3 of this white paper for the other software and hardware changes that Red Hat made.

File-Server Tests

Figure 3 shows the file-server performance we measured and the scaling between one- and four-processor configurations. Linux file-server performance on a four-processor system increases by 43% over a one-processor system. Windows NT Server, on the other hand, improves performance on a four-processor system by 105% over a one-processor system.

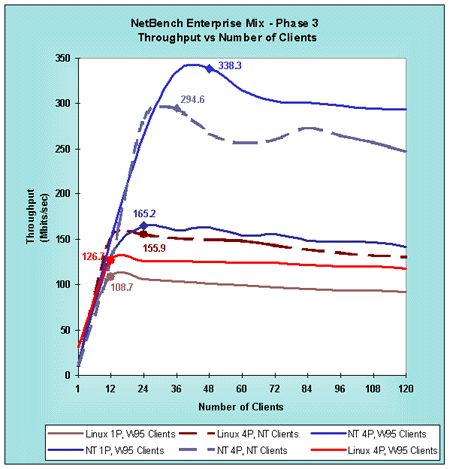

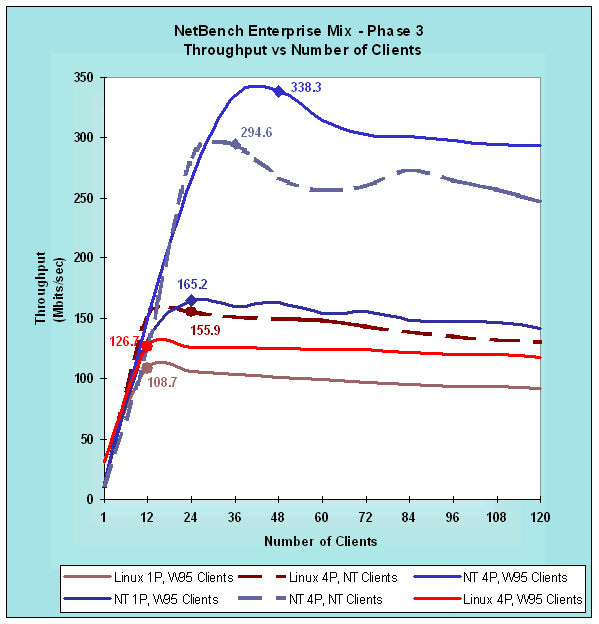

Figure 3: File Server Performance in Phase 3
(larger numbers are better)

Click to view larger chart

Figure 3 shows that all Windows NT Server configurations are faster file servers than any of the Linux configurations. Table 1 summarizes the Windows NT Server speed advantage over Linux.

Table 1: File Server Speed Advantage of Windows NT Server over Linux

# of Processors Client Type Windows NT Is Faster Than Linux By

1

Windows 95 1.5 times

4

Windows NT 1.9 times

4

Windows 95 2.7 times

Figure 4 shows that Red Hat's Phase 3 file-server performance matched the results Mindcraft obtained in the Second Benchmark.

Thus, Mindcraft obtained the best Linux performance possible for the four-processor server configuration, demonstrating again that Mindcraft's test was unbiased.

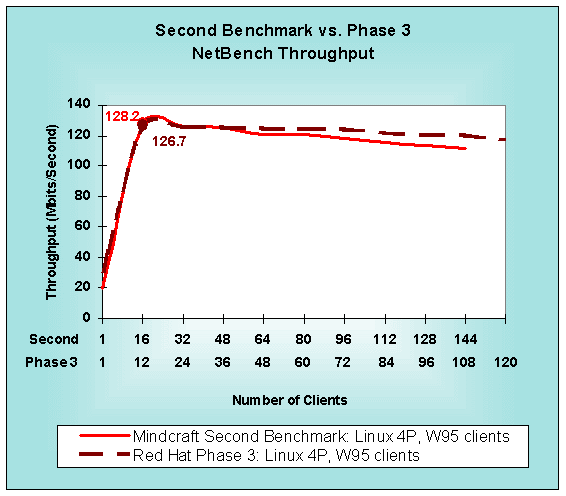

Figure 4: File-Server Performance in the Second Benchmark and Phase 3
(larger numbers are better)

Click to see a larger chart

Web-Server Tests

Figure 5 shows the Web-server performance for all of the phases. It shows that Red Hat was able to achieve 14% better performance than Mindcraft did in Phase 1 by using later software and different tuning for Apache, including static file caching. See Phase 3 for the details.

The Web-server tests show that Windows NT Server is 2.2 times faster than Linux 2.2.10/Apache 1.3.6 on a four-processor server and 1.4 times faster on a one-processor server.

Figure 5: Web Server Performance in Phases 1, 2 and 3
(larger numbers are better)

Click to view larger chart

The performance scaling differences between Linux and Windows NT Server are even more pronounced for Web servers. Linux increases four-processor system performance by 42% over a single processor system. Compared to the 124% performance scaling improvement Windows NT Server demonstrates, Linux has to make significant multiprocessor system performance improvements before it can catch Windows NT Server in scalability.

Linux file- and Web-server performance appears to be bottlenecked in the operating system kernel, not in Samba or Apache. This was demonstrated best when the Red Hat engineers ran the Zeus Web server. Zeus performance topped out at about the same place as Apache, using fewer resources. The major performance problems are with the TCP stack, which is single threaded in the 2.2.x Linux kernels, and with large-grained kernel locks that degrade multiprocessor performance. The Linux community is addressing these performance problems and others in their 2.3.x kernel series.

Conclusions

  • Mindcraft's credibility and reputation have been vindicated.
  • Windows NT Server 4.0 is 2.7 times faster than Linux/Samba on a four-processor file server for Windows 95 clients and 1.9 times faster for Windows NT clients.
  • Windows NT Server 4.0 is 2.2 times faster than Linux/Apache as a Web server on a four-processor system and 1.4 times faster on a one-processor system.
  • Linux performance does not scale well between one- and four-processor systems for file or Web servers.

Mindcraft Certification

Mindcraft certifies that the benchmark results reported in this white paper accurately represent the performance of Windows NT Server 4.0, Linux, Apache, and Samba running on a Dell PowerEdge 6300/400 server configured and tested as specified herein.

Our test results should be reproducible by others using the same test lab configuration, the same Dell server configurations, and the same software configurations documented in this report.

Phases 1 and 2


Footnotes

  1. The Red Hat participants left before Mindcraft completed the Phase 3 tests for Windows NT Server in order to make a flight home. PC Week did oversee these tests.
